CAT B Fit Out
Introduction
8 story office building in city centre was undergoing a Cat B fit out while accurate Structural models were not available for MEP services coordination
Type
Office Building
Area
36,000 Square Feet
Location
Dublin, Ireland
Scope
Creation of accurate construction models
Input
Tender design models
Output
Fully coordinated construction model with all requested asset information
Challenges Faced
Scanning of an active construction site with moving plant and personnel
Many castellated beams in high-level areas were found not to match the current state scan Data
Detailed post-survey report had to be presented to all affected BIM stakeholders in order to allow coordination and avoid construction issues
Value Presented

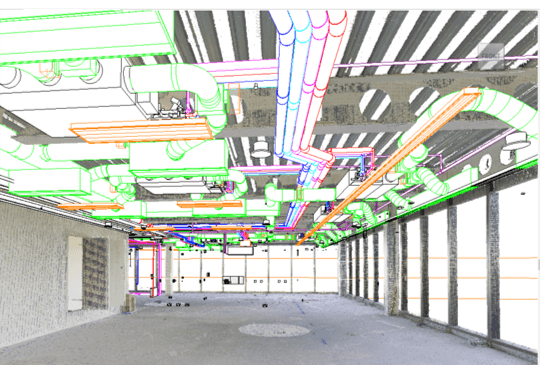

Utilisation of Scanning technology for model verification and update
Integration of existing installed rainwater pipes captured by the Scan Data
Everest was actively involved with the project team every step of the way
